SR01
SR01 Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for small/medium format cinemas and mul channel surround formats. SR01 is a powerful, 2-way, full range surround comprised of an 8″.
Description and Technical Data
Descrizione

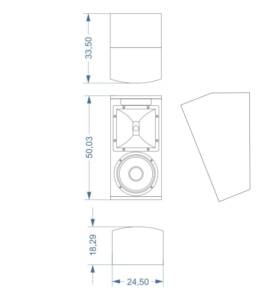

Technical Drawing
| Feature | Details |
|---|---|
| Type | SURROUND CINEMA SYSTEM 1600W 1X12″ + 1X1,4″ |
| Frequency Response(-10 dB) | 60 Hz – 20 kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 300 W |
| Peak | 600 W |
| Sensitivity 1W/1m | ( 96 dB S.P.L.) |
| Coverage | Horizontal 90° • Vertical 90° |
| Net Weight | 10 kg |
| Dimensions mm (±1 mm) (H x W x D) |
500 × 245 × 335mm |
