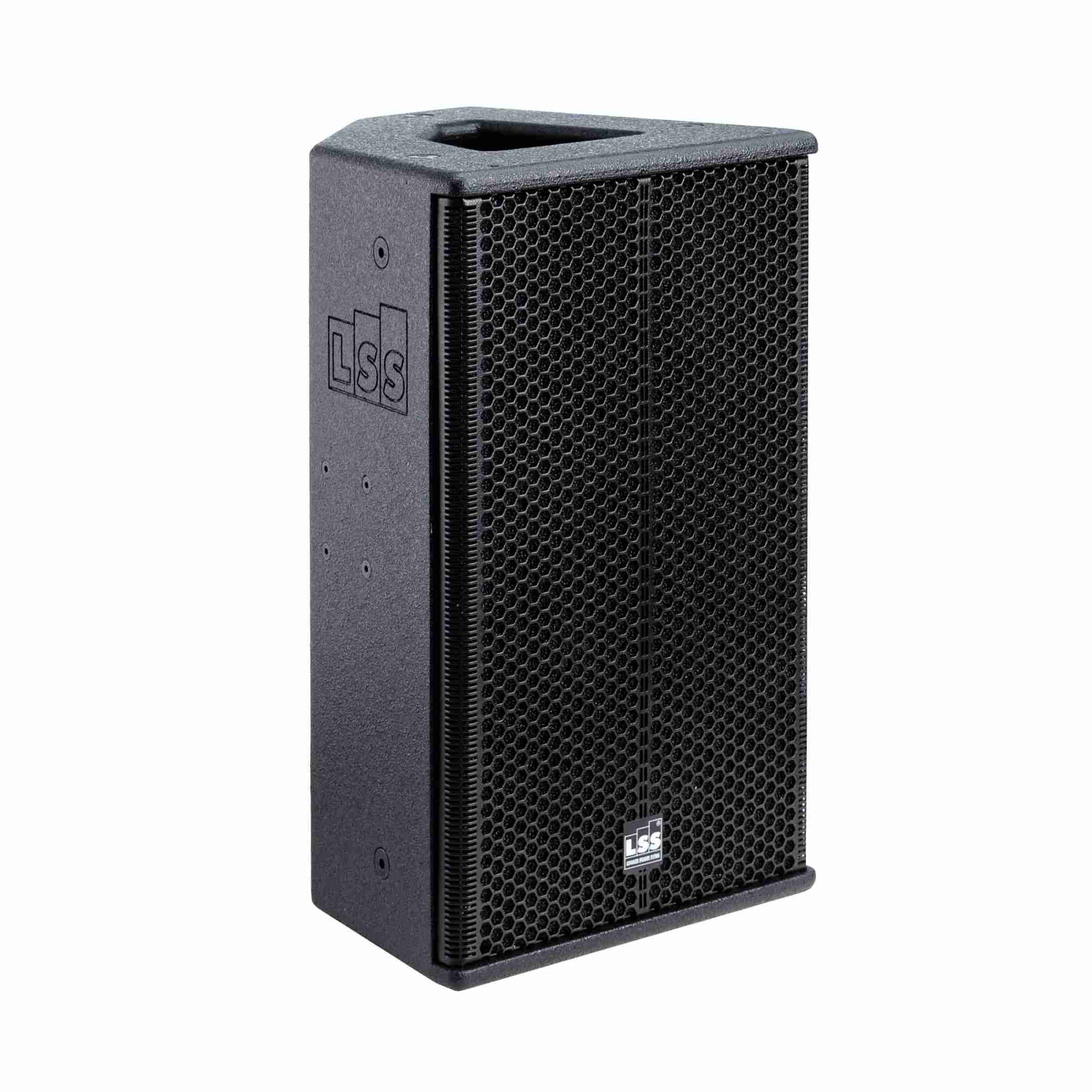

M 10

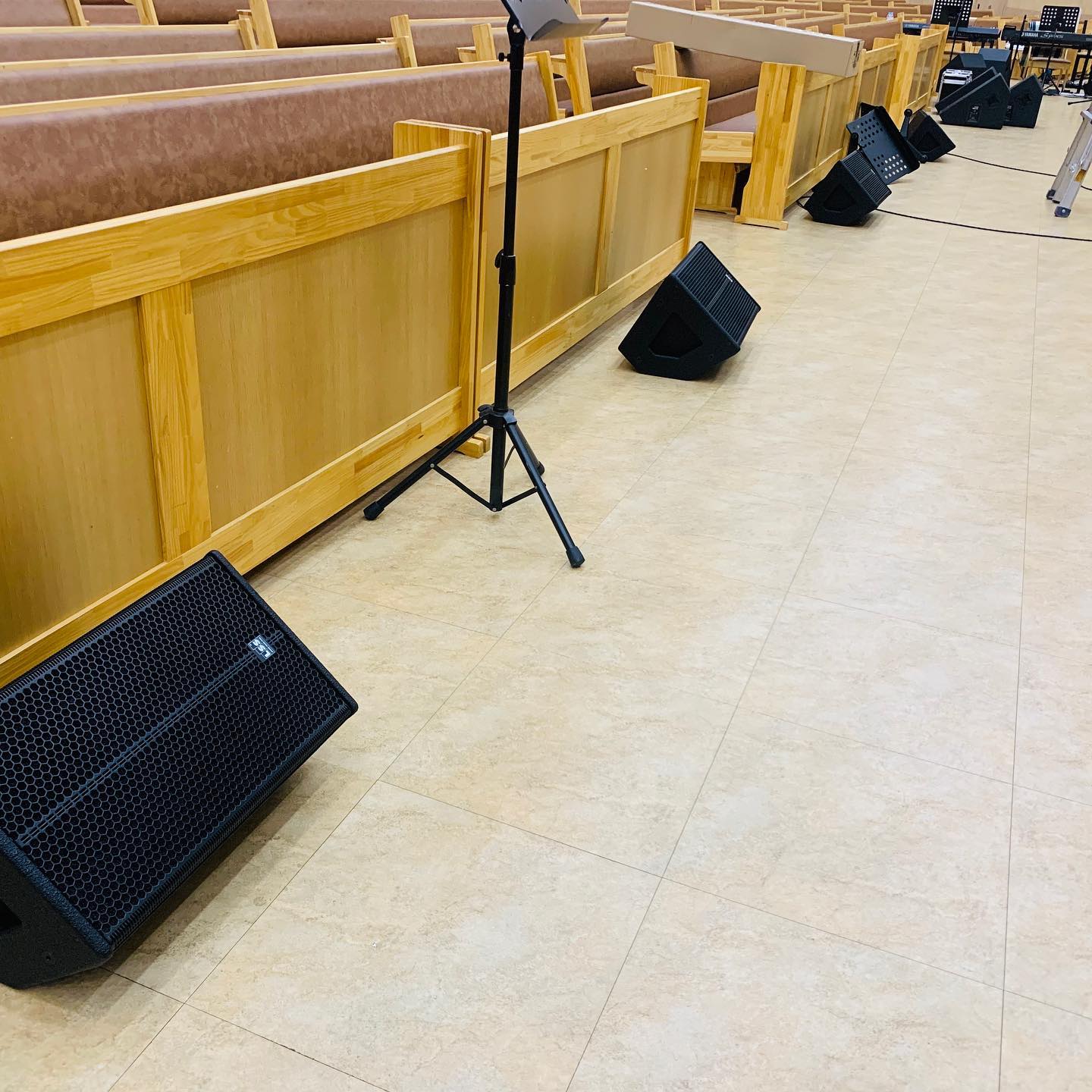

The Magma 10 is a multi-function very compact loudspeaker for mobile and fixed installation applications, especially where high SPLs needed. Magma 10 can be used for mini PAsystem alone or copled with a LSS sub woofer. Possyble also to use as a floor monitor
Description and Technical Data
Description
Take a spin

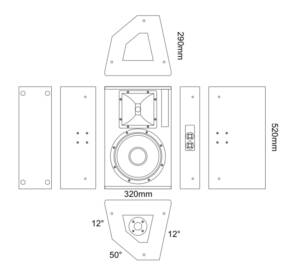

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT MULTIFUNCTION SYSTEM 2 WAYS 10″ 400W AES |
| Frequency Response -10db | 65Hz – 22kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 400 W |
| Peak | 900 W |
| Maximum SPL output calculated | (126 db SPL) |
| Nominal Dispersion | 90°x40° (HxV) |
| Net Weight | 15.8 kg |
| Dimensions mm (±1 mm) (H x W x D) |
520 x 320 x 290mm |
