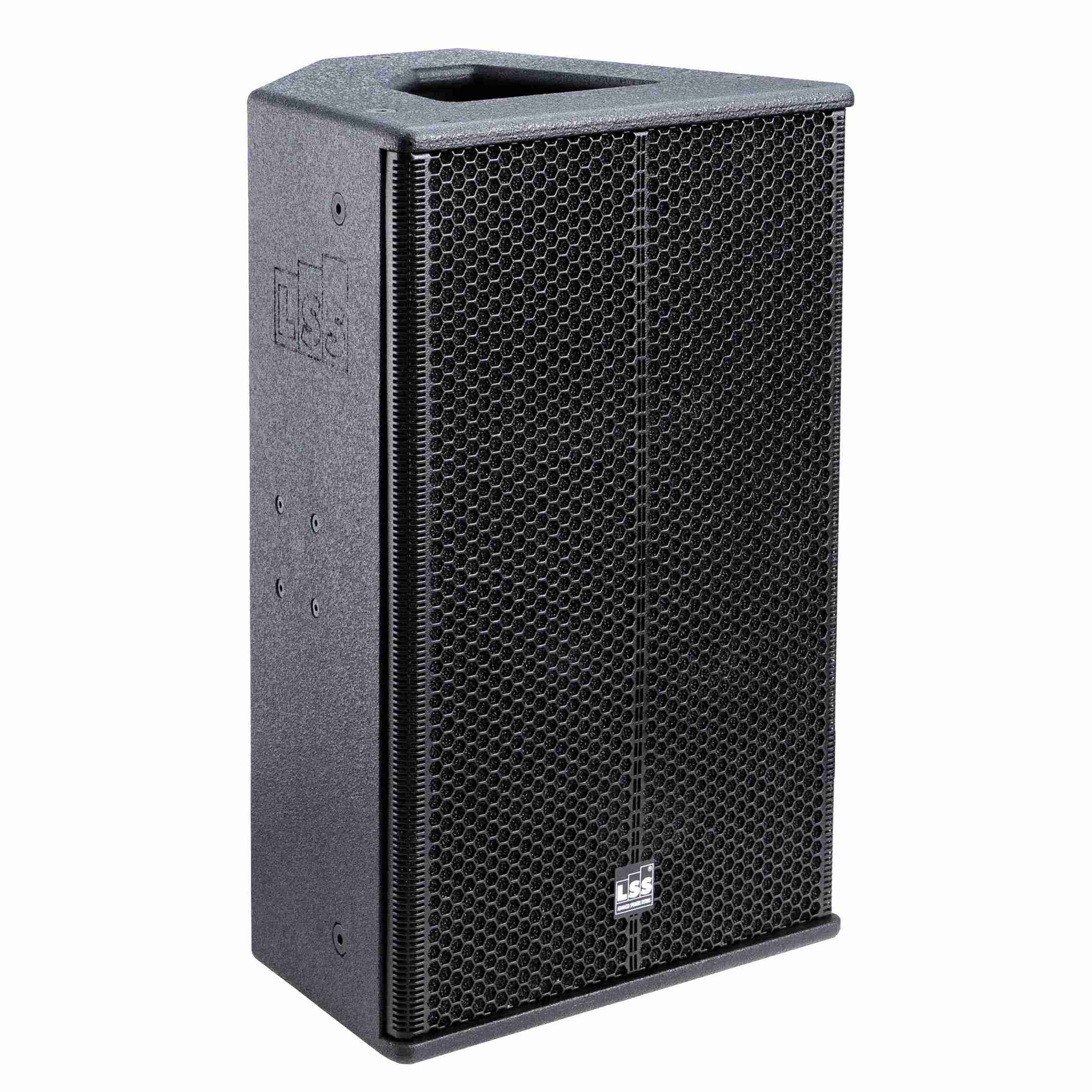

M 12
The Magma 12 is a multi-function loudspeaker very compact for mobile and fixed installation
applications, especially where high SPLs needed. Can be used as Main PA Systems, Monitor System, Delay and Stage fill.
Description and Technical Data
Description
Take a spin

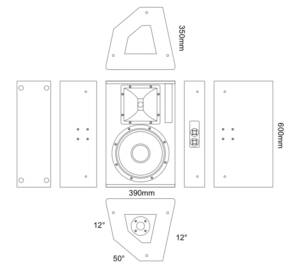

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT MULTIFUNCTION SYSTEM 2 WAYS 12″ 500W AES |
| Frequency Response -10db | 60Hz – 22kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 500 W |
| Peak | 1200 W |
| Maximum SPL output calculated | (129 db SPL) |
| Nominal Dispersion | 90°x40° (HxV) |
| Net Weight | 20.5 kg |
| Dimensions mm (±1 mm) (H x W x D) |
600 x 390 x 350mm |
