CP8 – Compact High-Output Loudspeaker
The CP8 is a compact, versatile loudspeaker designed for mobile and fixed installations. Featuring an 8” LF transducer and 1” HF driver, it delivers up to 126 dB SPL with high power handling and low distortion.
Suitable for mini PA systems, floor monitoring, front-fill, paging and background/foreground music, the CP8 combines robust Baltic birch construction, reliable components and flexible mounting options.
Description and Technical Data
Descrizione
Take a spin

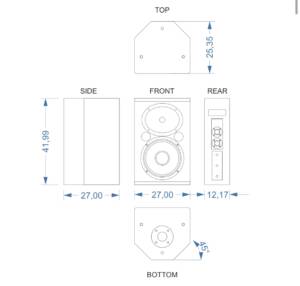

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT 2-WAY LOUDSPEAKER SYSTEM 300W AES 8 Ω 1X10″ |
| Frequency Response -10db | 60Hz – 20kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 200W |
| Peak | 450W |
| Maximum SPL output calculated | (126 db SPL) |
| Nominal Dispersion | 90°x60° (HxV) |
| Net Weight | 10,5kg |
| Dimensions mm (±1 mm) (H x W x D) |
430 x 270 x 253mm |
